Material:

Made of flame-retardant rigid PVC material

Fire rating:

UL94V-0, low-smoke and low-halogen, non-combustible in case of fire, excellent fire resistance and insulation

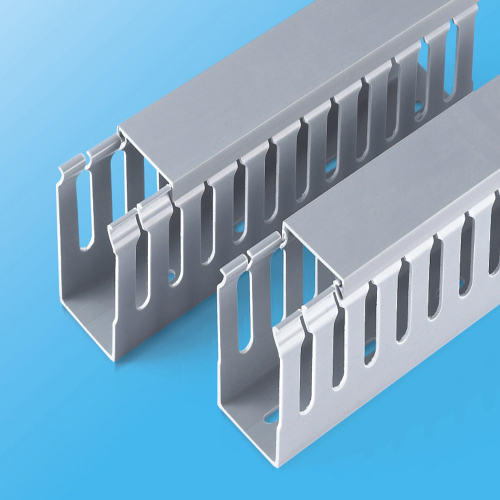

Product structure:

It consists of a groove bottom and a groove cover, with outlet holes on both sides of the bottom groove

Product color:

Gray RAL 7030, White RAL 9003, Blue RAL 5005, Black

Working temperature:

static: -40°C, continuous high temperature to 70°C

Instructions:

First fix the bottom groove. Put the cable to be equipped into the groove and cover the groove cover.

Features:

1. After the combination of the reverse button groove cover and the groove body design, it will never fall off, and the joint surface is smooth, and it does not cut hands and scratch the surrounding wiring
2. The wiring groove is not easy to break, deform, change color within 70°C, and it is time-saving and convenient to assemble
3. Low outlet hole, easy combination, simple disassembly and easy wiring

Remark:

1. For large quantities, molds can be opened to produce the required specifications or customized lengths
2. The wiring groove is not easy to break, deform, change color within 70°C, and it is time-saving and convenient to assemble

Type	H×W（mm）	Contained wire(2.0²）	Length
Type	H×W（mm）	Contained wire(2.0²）	Length
PXC3-2015	20×15	5-10PCS	2m
PXC3-2525	25×25	10-20PCS	2m
PXC3-3020	30×20	10-20PCS	2m
PXC3-3025	30×25	15-25PCS	2m
PXC3-3030	30×30	20-40PCS	2m
PXC3-3035	30×35	30-45PCS	2m
PXC3-3040	30×40	40-55PCS	2m
PXC3-3525	35×25	30-45PCS	2m
PXC3-3525	35×35	35-50PCS	2m
PXC3-3550	35×50	50-60PCS	2m
PXC3-4025	40×25	20-25PCS	2m
PXC3-4030	40×30	35-45PCS	2m
PXC3-4040	40×40	60-70PCS	2m
PXC3-40100	40×100	140-160PCS	2m
PXC3-4433	44×33	25-45PCS	2m
PXC3-4525	45×25	20-25PCS	2m
PXC3-4533	45×33	40-55PCS	2m
PXC3-4545	45×45	60-70PCS	2m
PXC3-4565	45×65	110-120PCS	2m
PXC3-5020	50×20	20-25PCS	2m
PXC3-5025	50×25	20-30PCS	2m
PXC3-5030	50×30	25-40PCS	2m
PXC3-5035	50×35	40-60PCS	2m
PXC3-5040	50×40	60-70PCS	2m
PXC3-5045	50×45	70-80PCS	2m
PXC3-5050	50×50	80-90PCS	2m
PXC3-5055	50×55	80-95PCS	2m
PXC3-5060	50×60	100-120PCS	2m
PXC3-5080	50×80	160-180PCS	2m
PXC3-50100	50×100	200-2503PCS	2m
PXC3-6025	60×25	40-50PCS	2m
PXC3-6033	60×33	60-80PCS	2m
PXC3-6035	60×35	90-105PCS	2m
PXC3-6040	60×40	100-115PCS	2m
PXC3-6045	60×45	110-125PCS	2m
PXC3-6050	60×50	115-130PCS	2m
PXC3-6060	60×60	120-135PCS	2m
PXC3-6080	60×80	180-210PCS	2m
PXC3-60100	60×100	240-290PCS	2m
PXC3-6525	65×25	40-50PCS	2m
PXC3-6533	65×33	60-80PCS	2m
PXC3-6545	65×45	110-115PCS	2m
PXC3-6565	65×65	125-140PCS	2m
PXC3-8025	80×25	110-120PCS	2m
PXC3-8035	80×35	110-130PCS	2m
PXC3-8040	80×40	140-160PCS	2m
PXC3-8045	80×45	145-165PCS	2m
PXC3-8050	80×50	160-180PCS	2m
PXC3-8055	80×55	180-210PCS	2m
PXC3-8060	80×60	180-210PCS	2m
PXC3-8080	80×80	240-290PCS	2m
PXC3-80100	80×100	260-350PCS	2m
PXC3-80120	80×120	280-380PCS	2m
PXC3-80140	80×140	350-450PCS	2m
PXC3-10033	100×33	130-165PCS	2m
PXC3-10040	100×40	130-175PCS	2m
PXC3-10048	100×48	210-240PCS	2m
PXC3-10050	100×50	220-250PCS	2m
PXC3-10060	100×60	240-290PCS	2m
PXC3-10080	100×80	260-360PCS	2m
PXC3-100100	100×100	300-400PCS	2m
PXC3-130100	130×100	350-450PCS	2m
PXC3-150100	150×100	450-700PCS	2m
